The Circuit That Shouldn’t Have Burned

Can you diagnose the failure before the evidence gives it away?

โ–ถ INTERACTIVE CASE FILE โ€ข 5โ€“10 MIN โ€ข CLICK TO INVESTIGATE

Inspect, commit, prove, fix, and sign off.

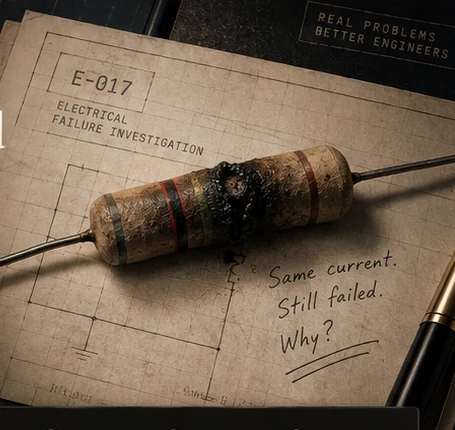

Case E-017 engineering failure visual
HOW THIS WORKS

Think like
a real engineer.

Follow the investigation process used in the field โ€” in five guided steps.

1

Inspect

Review the problem, diagram, and evidence.

2

Commit

Choose your hypothesis.

3

Prove

Run calculations and test your idea.

4

Fix

Select and validate a safe correction.

5

Sign Off

See the full debrief and key takeaways.

Case Brief

SAME PRINCIPLES. HIGHER STANDARDS.
PROBLEM STATEMENT

A 12 V source is connected across a required 2 ฮฉ load. The calculated and measured current is 6 A, but the resistor overheats and fails within seconds. Identify the missing engineering check, prove the root cause, and choose a safe correction.

Circuit Analysis Electrical & Computer Design Verification Root Cause Analysis Safe Correction
E-017
INVESTIGATION WORKSPACE WORK THROUGH THE CASE โ€” YOUR CHOICES MATTER.
๐Ÿ”’
DEBRIEF (LOCKED)

Complete the investigation
to unlock the full debrief.

Find the root cause, confirm the fix, and see how this connects to the exam.

๐Ÿ”’Root causeComplete the case
to reveal
๐Ÿ”’Correct fixComplete the case
to reveal
๐Ÿ”’Exam takeawayComplete the case
to reveal
CASE CLOSED ยท ENGINEERING VERDICT

What actually failed โ€” and what should change.

What broke it

72 W operating dissipation exceeded the 10 W component rating.

What was missed

A correct current calculation does not guarantee an adequately rated component.

Corrected model

Always compare calculated power with rated capacity and appropriate margin.

QUICK ANSWER

The resistor failed because its 10 W power rating was far below the 72 W it had to dissipate. Correct resistance and current values do not prove that a component is adequately rated.

ENGINEERING TAKEAWAY

Correct circuit behavior and safe component selection are separate checks. Calculate operating power and compare it with rated capacity plus design margin.

CASE QUESTIONS

Questions this case should settle.

Why can a resistor burn even when the resistance value is correct?

Because the resistor may be forced to dissipate more power than its wattage rating allows.

How much power does a 2 ฮฉ resistor dissipate at 6 A?

P = IยฒR = 6ยฒ ร— 2 = 72 W.

What should an engineer check after calculating current?

Check operating power against the component's rated power and apply an appropriate design margin.
